CM-700d / CM-600d

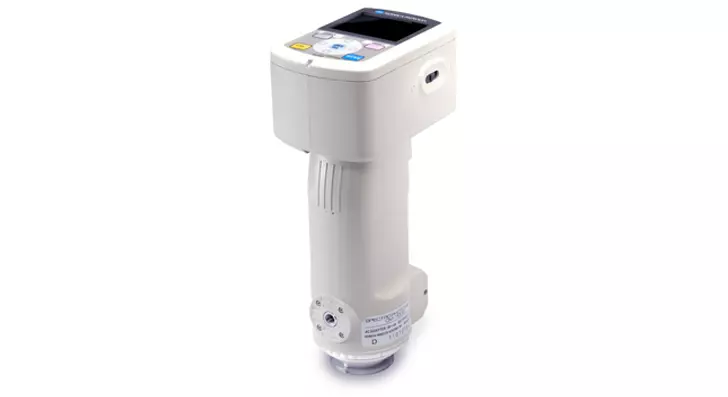

Portable Spectrophotometers CM-700d / CM-600d, ideal for colour measurement of solid samples

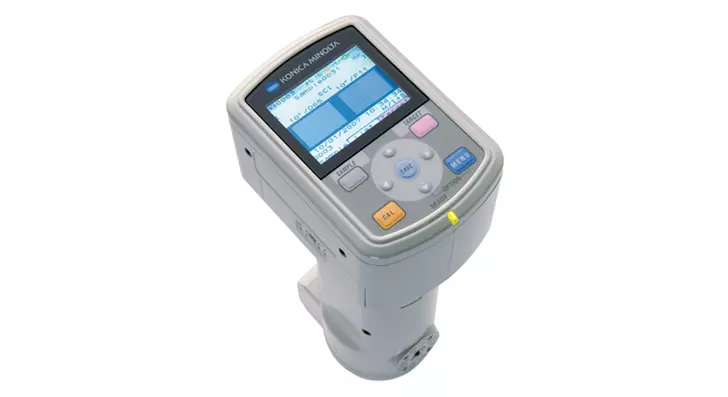

Portable Spectrophotometers CM-700d / CM-600d, with a large size colour LCD screen for numerical and graphic data display

CM-700d / CM-600d

The vertical alignment of this portable spectrophotometer means that it has a small footprint, perfect for small or curved surfaces.

    CM-600d:

  • Vertically aligned portable spectrophotometer
  • Wavelength range 400-700 nm
  • d:8° Sphere Geometry
  • Simultaneous SCI / SCE measurement
  • 1 Aperture MAV


    • CM-700d:

  • Vertically aligned portable spectrophotometer
  • Wavelength range 400-700 nm
  • d:8° Sphere Geometry
  • Simultaneous SCI / SCE measurement
  • 2 Apertures SAV / MAV
Request a Quote
Portable Spectrophotometers CM-700d / CM-600d, ideal for colour measurement of solid samples
Portable Spectrophotometers CM-700d / CM-600d, with a large size colour LCD screen for numerical and graphic data display

Ideal solution for precise colour measurement of shaped and curved samples


The Konica Minolta CM-700d and CM-600d are vertically aligned portable sphere type spectrophotometers. For each measurement, data for specular component included (SCI) and excluded (SCE) are taken simultaneously to analyse the impact of surface conditions on measured colour.

The simple colour display and control pad means that the instrument is easy to integrate into processes and minimises the risk of operator error. Easy and intuitive user guidance in 6 languages guarantees maximum efficiency for daily colour quality control in the lab or the production line.

The CM-700d offers an additional user selectable 3mm measuring aperture to further improve performance on small samples.


Features

Features
  • Built-in colour display: colour measurement data is displayed graphically and numerically along with tolerances and simplified pass / warn / fail judgements of samples against the relevant target colour data.

  • Vertical alignment: the small footprint of the instrument is ideal for accurately and securely placing the measurement aperture on small and curved solid samples.

  • Wireless communication: the device offers a wireless Bluetooth® link to a PC or printer. This feature brings a new dimension of freedom and mobility to production colour measurement operations, eliminating the need for tangled wires and connecting cables. The Bluetooth® communication of the new devices allows for bi-directional wireless communication up to a distance of 100 metres. In stationary mode, the wired connection via a USB port can also be used.

  • Selection of versatile aperture plates: dependent on the sample, the device is supplied with different aperture plates with and without a foot to improve the contact of the device to flat samples or with optical glass apertures for powdered, damp or soft samples.

Portable spectrophotometer CM-700d

Specifications & Downloads

Specifications & Downloads

Model

CM-700d

CM-600d

Illumination/viewing system

di:8°, de:8°  (diffused illumination, 8-degree viewing angle),
d:8° (diffuse illumination/8° viewing angle), selectable SCI (di:8° specular component included) and/or SCE (de:8° specular component excluded) measurement.
Conforms to CIE No. 15, ISO 7724/1, ASTM E-1164, DIN 5033 Teil 7, and JIS Z8722 Condition C standards.

Size of integrating sphere

Ø 40 mm

Detector

Silicon photodiode array (dual 36-element)

Spectral separation device

Diffraction grating

Wavelength range

400 nm to 700 nm

Wavelength pitch

10 nm

Half bandwidth

Approx. 10 nm

Light source

Pulsed xenon lamp (with UV cut filter)

Measurement time

Approx. 1 second

Battery performance

With alkaline dry batteries: Approx. 2000 measurements
With nickel-metal-hydride rechargeable batteries (2300 mAh): Approx. 2000 measurements with full charge
* Measured at 10-second intervals at 23°C; measurement fixed at SCI or SCE

Measurement/illumination area

MAV: Ø 8 mm / Ø 11 mm
SAV: Ø 3 mm / Ø 6 mm
* Changeable by replacing target mask and selecting lens position

MAV: Ø 8 mm / Ø11 mm only

Repeatability

Spectral reflectance: Standard deviation within 0.1%, Chromaticity value: Standard deviation within ΔE*ab 0.04
* When a white calibration plate is measured 30 times at 10-second intervals after white calibration

Inter-instrument agreement

Within ΔE*ab 0.2 (MAV/SCI)
* Based on 12 BCRA Series II color tiles compared to values measured with a master body at 23°C

Display

2.36-inch TFT color LCD

Interfaces

USB1.1; Bluetooth® standard version 1.2*

Observer condition

CIE: 2° and 10° standard observer

Illuminant condition

CIE: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (simultaneous evaluation is possible using two light sources)

Displayed data

Spectral values/graph, colorimetric values, color difference values/graph, PASS/FAIL result, color patch, color assessment

Color spaces

L*a*b*, L*C*h, Hunter Lab, Yxy, XYZ, Munsell, and color difference in these spaces (except for Munsell)

Colorimetric data

MI, WI (ASTM E313), YI (ASTM E313-73/ASTM D1925), ISO Brightness, 8° gloss value

Color difference formulas

ΔE*ab (CIE1976), ΔE*94 (CIE1994), ΔE00 (CIE 2000), CMC (l:c)

Storable data sets

Measurement data: 4000 sets/Target color difference data: 1000 sets

Power

4 AA-size alkaline dry batteries or nickel-metal-hydride rechargeable batteries; , Special AC adapter

Dimensions (W x H x D)

73 x 211.5 x 107 mm

Weight

Approx. 550 g (without white calibration cap and batteries)

Operating temperature/ humidity range

5 to 35°C; relative humidity 80% or less with no condensation

Storage temperature/ humidity range

0 to 45°C; relative humidity 80% or less with no condensation
Applicable Bluetooth® profile: Serial Port Profile：Output: Bluetooth® Power Class 1 The communication distance may vary depending on the obstacles and radio wave conditions between the devices. Successful wireless communication is not guaranteed with all Bluetooth®-ready equipment. Bluetooth® is a registered trademark of Bluetooth SIG, Inc. and is used under license agreement.

CM-600d / CM-700d Catalogue

Portable spectrophotometer with small footprint for measurement of small and curved solid samples.

Download

Accessories

Accessories

Optional accessories for CM-700d / CM-600d



Universal Target Mask for CM-700d (No Wireless) Series CM-A523

  • Small footprint and enhanced standing stability
  • Target finder without offset
  • Integrated ring groove for Retaining Ring and Cell Holder to measure powder or liquids with tube cells
  • Interior tube cell holder for powdery and pasty materials using aperture with glass plate
  • Triangular groove to reproducibly position long objects with a radius
  • Alternative positioning fixture

Item Order Code: B027256

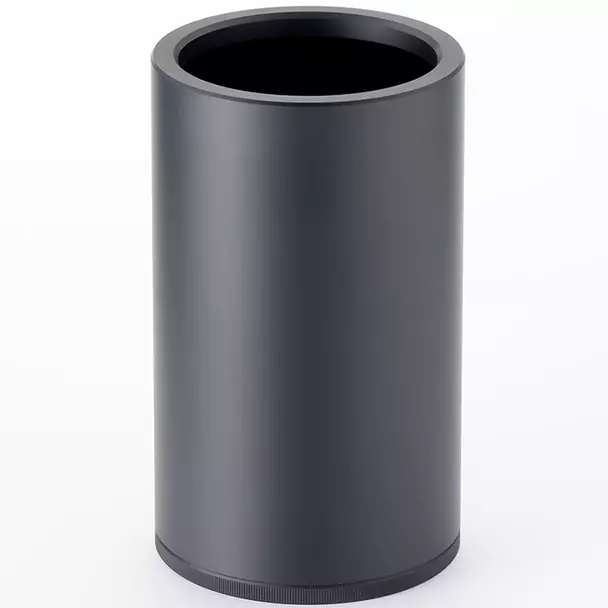

Zero Calibration Box CM-A182

For perfect zero calibration. The black cavity tube prevents ambient light from entering the sensor during the calibration.

Item Order Code: A0E8-705




Glass protected Target Masks Ø 8 mm CM-A183

Target mask with glass protection plate to measure soft or wet samples. The protection glass plate prevents specimen from entering the instrument. The CM-A183 is also recommended for flattening soft specimen. The diameter of the measuring area is 8 mm and the size of disk is 40 mm in diameter.

Item Order Code: A0E8-706

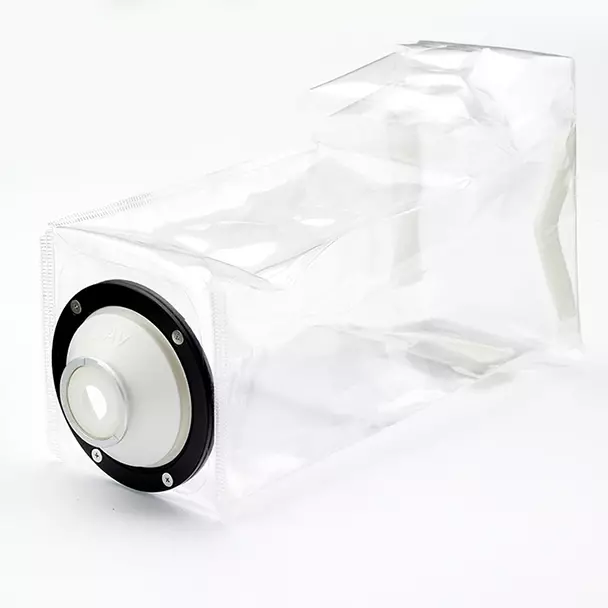

Dust Cover Set CM-A185

Plastic cover and glass protected 8mm target mask to measure dusty materials with prevention of contaminating the instrument.

Item Order Code: A0E8-708


Replacement Dust Cover CM-A186

Item Order Code: A0E8-709


CM-A96 Transmittance Specimen Holder (for use with CM-A514)

Required to fix opaque samples or the Glass or Disposal cells for measurement of opaque liquids in combination with the Sample Holder CM-A514. The clamp provides a constant pressure to the sample and the moveable side holders keep the cells in correct position.

Item Order Code: 1864-708

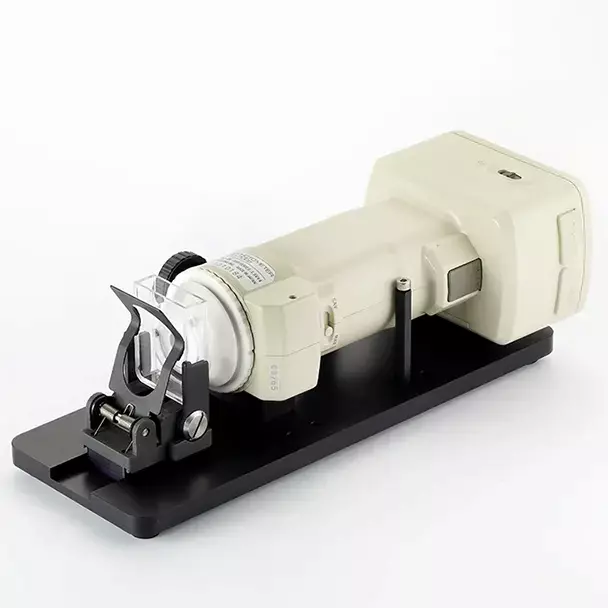

Sample Holder CM-A514

With the Sample Holder CM-A514 the instrument is set in horizontal position. Allows in combination with the Specimen Holder CM-A96 measurements of small samples up to a thickness of 22.5 mm or with the Glass- or Disposal Cells with 10 or 20 mm optical path the measurement of opaque liquids.

Item Order Code: B027152


Cell Holder CM-A515

For measurements of powders, paste and grains in combination with the Glass Cell CR-A504. The measuring head is set to up-side down position and the Cell Holder CM-A515 precisely fixes the position of the Glass Cell CR-504. To secure the instrument in a save position against tipping the Vertical Stand USD CM-A516 is recommended.

Item Order Code: B027153


Glass Cell CR-A504

Round cell made of optical glass (Diameter 34 mm) for measurements of powders, pastes, grains and small granular materials. For precise positioning, Cell Holder CM-A515 is recommended.

Item Order Code: 9970-2504

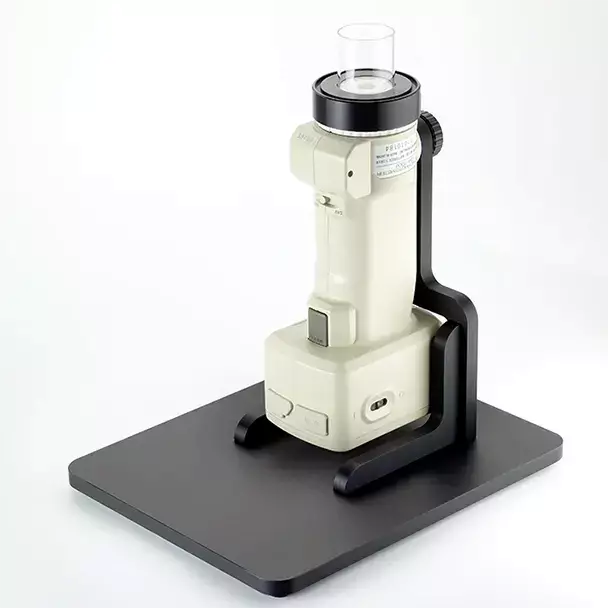

Vertical Stand USD CM-A516

Stand to align the instrument in up-side-down position. Ideal to be combined with Cell holder CM-A515.

Item Order Code: B027154


CM-A98 Rectangular Cell 50 x 38, optical path 10 mm

Rectangular cell made of optical glass for precise transmittance measurement of transparent liquids. The optical path is 10 mm and recommended for liquids with normal optical density.

Item Order Code: 1864-710


CM-A99 Rectangular Cell 50 x 38, optical path 20 mm

Rectangular cell made of optical glass for high precision transmittance measurement of transparent liquids. The optical path is 20 mm and recommended for liquids with low optical density.

Item Order Code: 1864-711


Flow-Cell with 10 mm path CM-A508

Flow cell with 10 mm path for reflectance measurements of water based opaque liquids in combination with Sample Holder CM-A514 and Specimen Holder CM-A96.

Item Order Code: 9970-237


CM-A131 Rectangular Disposal Cell 50 x 38, optical path 10 mm

Rectangular disposal cell made of PMMA with an optical path of 10 mm. Suitable for transmittance measurements of water based transparent liquids. Recommended for liquids with normal density.

Item Order Code: 1870-716


CM-A132 Rectangular Disposal Cell 50 x 38, optical path 20 mm

Rectangular disposal cell made of PMMA with an optical path of 20 mm. Suitable for transmittance measurements of water based transparent liquids. Recommended for liquids with low density.

Item Order Code: 1870-717


Hard Case CM-A176

For storing and hand carry the instrument and accessories.

Item Order Code: A0E8-604

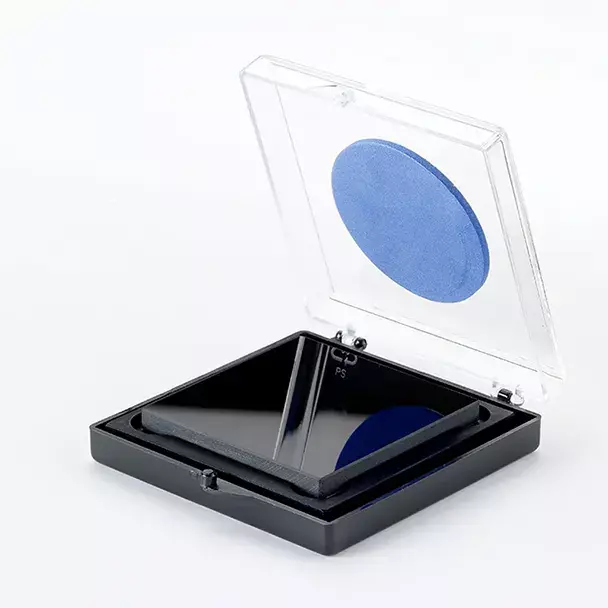

Black Glass Tile CM-A511

Black glass tile with high gloss and absorption. Due to extreme long-term stability recommended as background standard.

Item Order Code: 9970-1109
